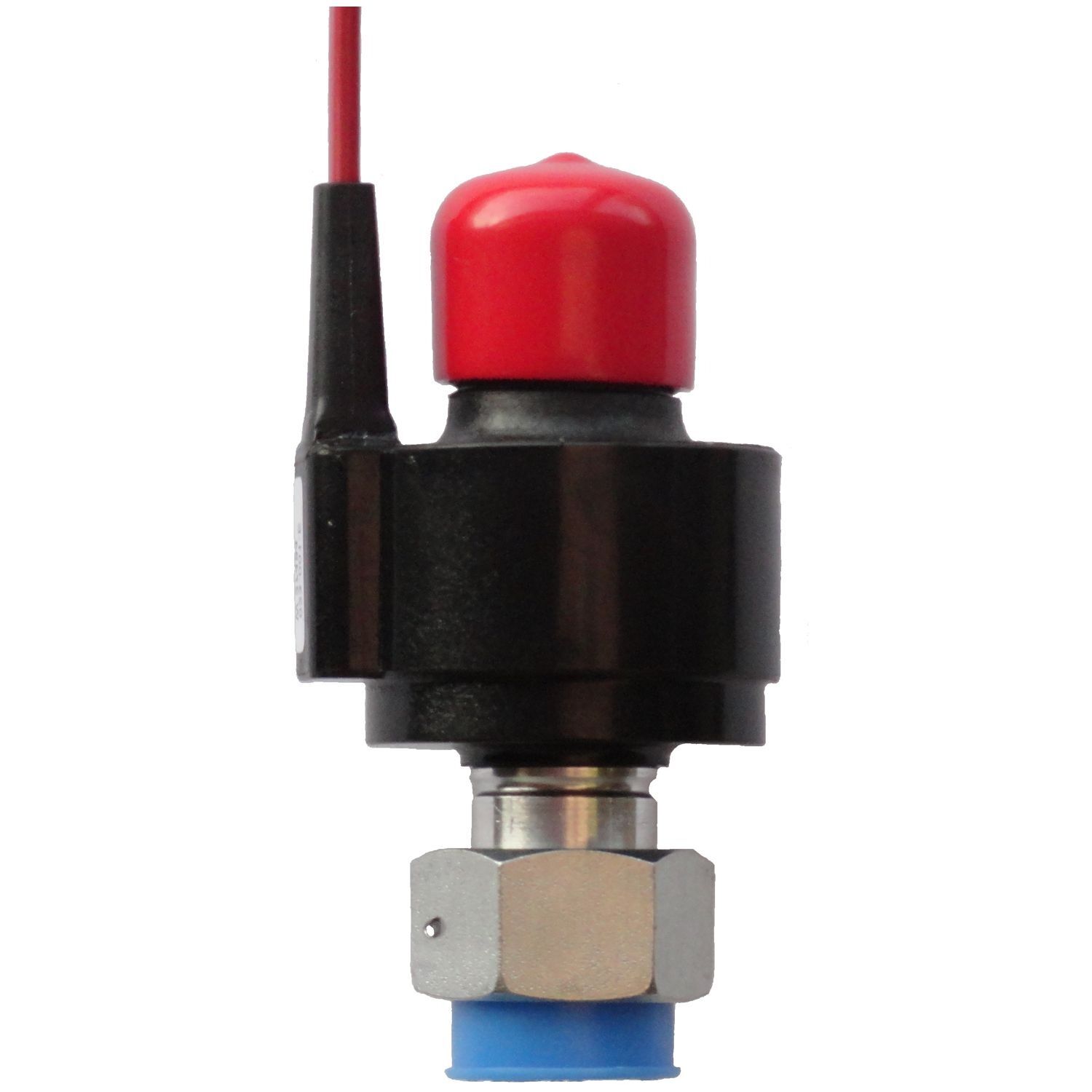

Signal Generator, 4 pulse, 285Ohm

$199.00

SKU: 023-021 Category: Signal Generator

Description

Frequency: 4 pulses per revolution
Impedance: 285ohm, 107mH @1000Hz or 795ohm, 301mH @1000Hz
Housing material: Glass-filled nylon
Bearing: double-oilite
Lead wire: 18 AWG, 16/19 stranded

Please log in to view content.

Additional information

Weight	1 lbs
Dimensions	2 × 2 × 4 in
Housing Thread	7/18-18, M22 X 1.5, None
Impedance	285, 795
Drive	.104 SQUARE, .150 SQUARE, .187 SQUARE, .152 ROUND, .187 ROUND, .203 ROUND, DIN
Connector	Deutsch, WeatherPack, Other, NONE
